Assignment 1

Overview

The first assignment is to set up a local database environment and be able to perform basic operations using the client.

This task is an opportunity to:

  • Learn how to launch the database service
  • Get familiar with using a client to connect the database service and perform basic operations, which can be useful for you in the future.

Release Date: March 05, 2021 / 15:25

Due Date: March 05, 2021 / 17:10

Quick Start

Before setting up a local database in your own computer, you can try with computers in laboratory.

  • In the desktop, you will see a folder named "数据库引论"
  • Then double click the "Mysql Workbench.exe" inside to start the application.
  • You will also see a txt file called "mysql_password", which will be used when connecting.

Once you establish connection successfully, you can try this simple task

Specification

Then you need to install both mysql-server and mysql-client in your own computer.

Server

Download Address You can come here for reference

Hint

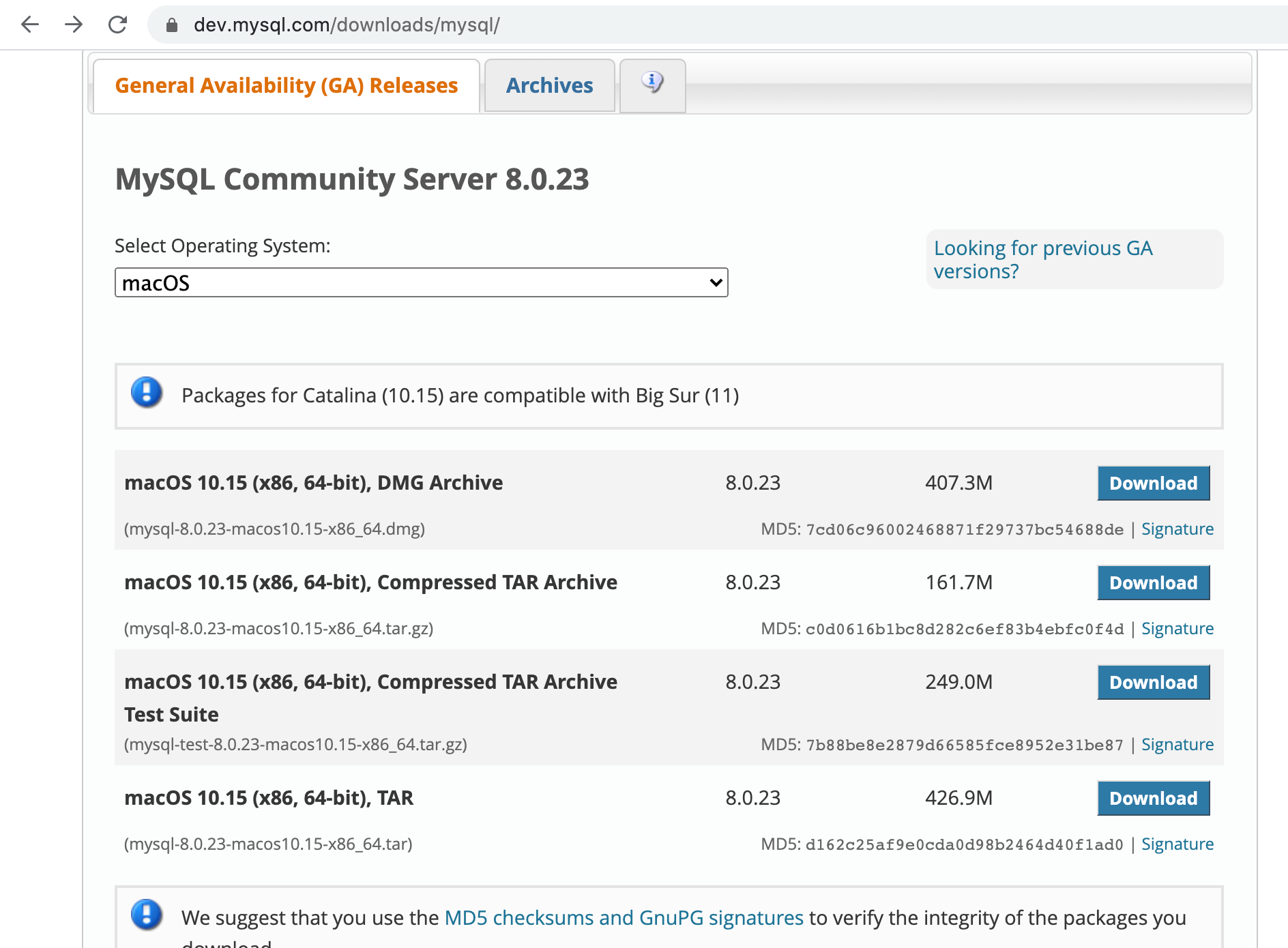

Please choose the version that corresponds to your operating system

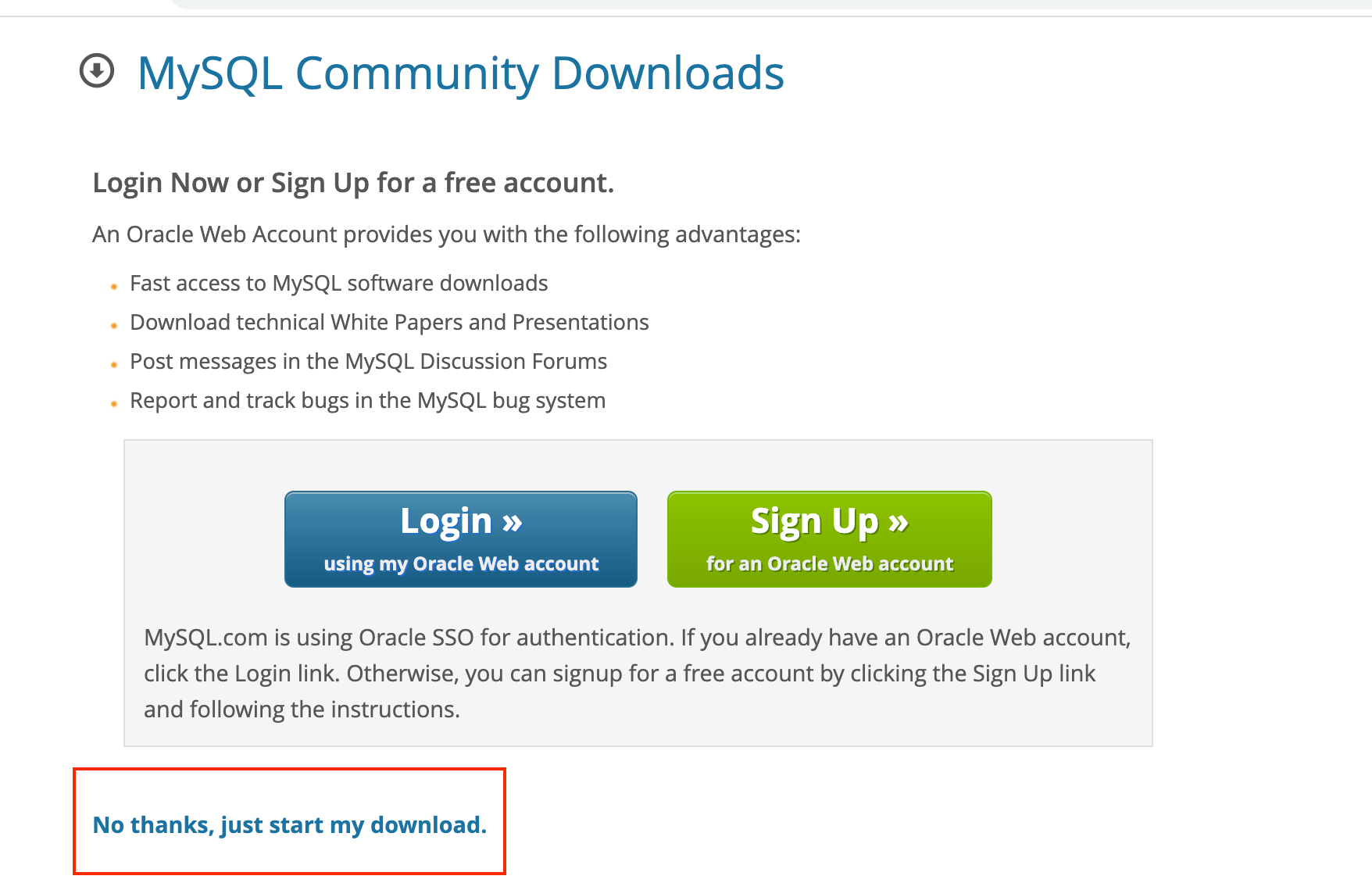

Then click the No thanks, just start my download.

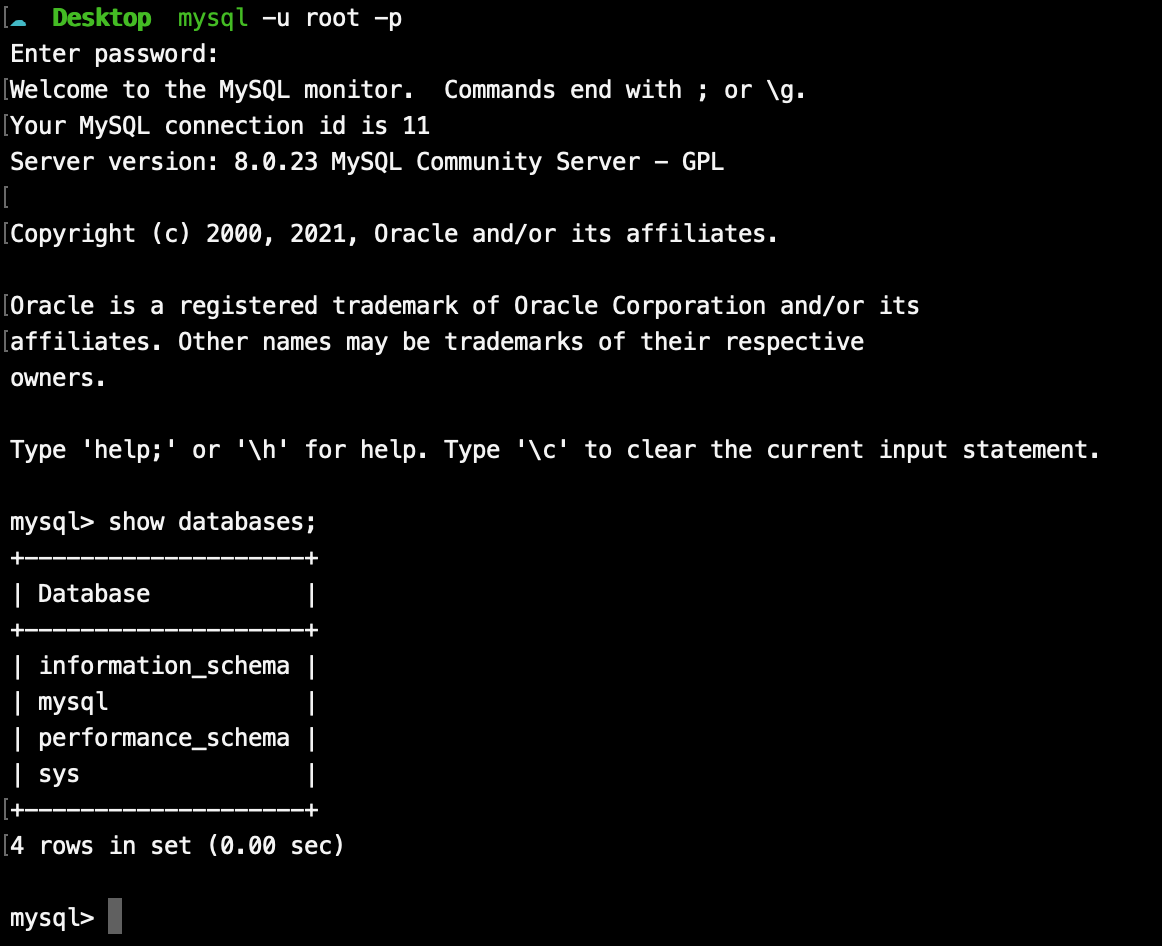

If you have installed and configured the environment path, you can try the following commands to determine whether the installation is successful

$ mysql -u root -p

$ mysql> show databases;

Client

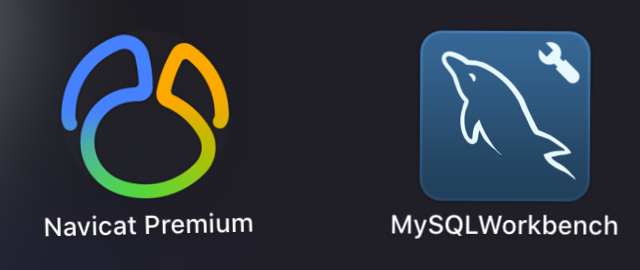

We recommend these two client tools

Download address:

Hint

Please choose the version that corresponds to your operating system

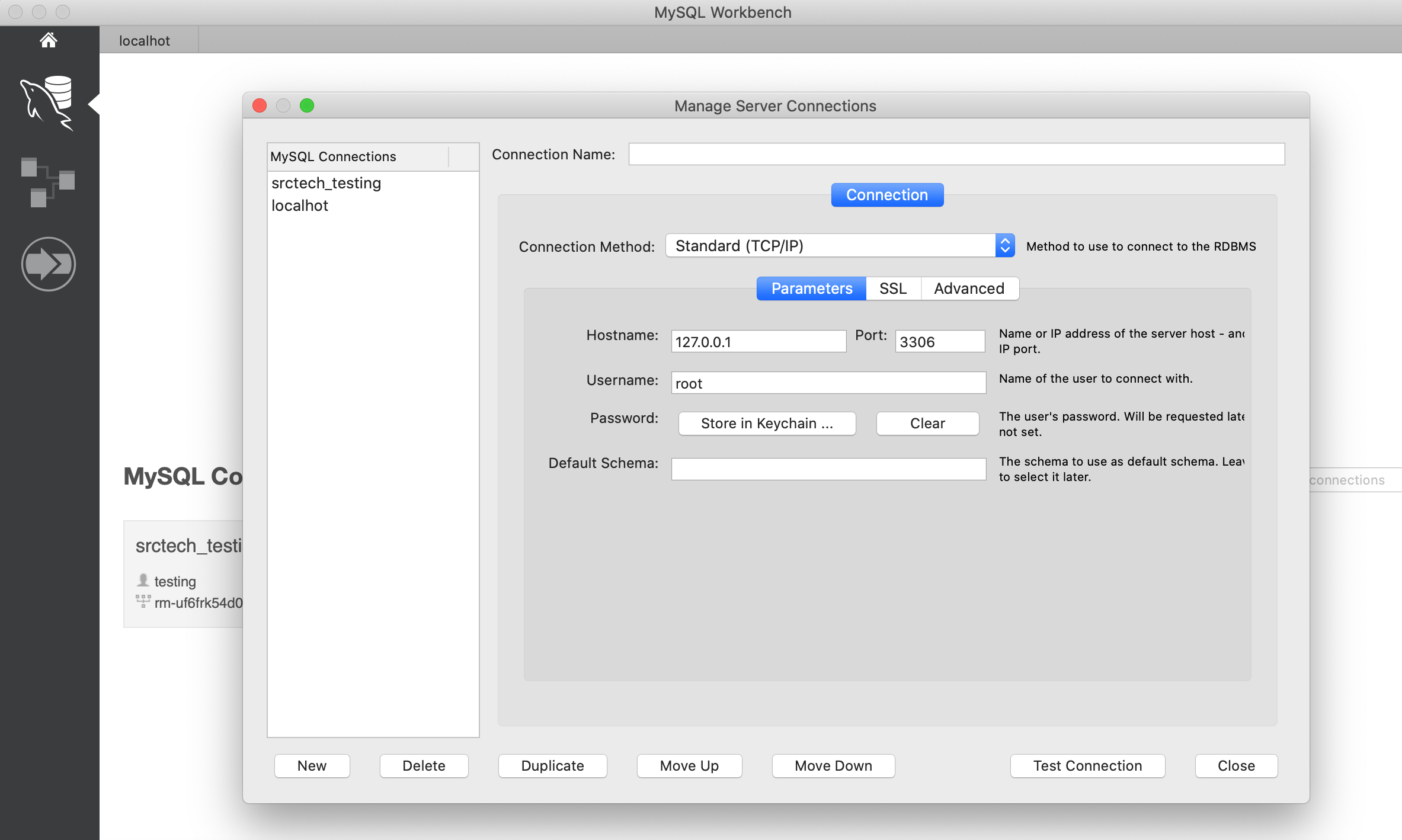

  • the default port will be 3306

Simple task

After all the above steps are completed, you are required to do following

  • create a new schema
CREATE SCHEMA `intro_db` ;

  • Create a new table
CREATE TABLE `intro_db`.`course` (
    `id` INT NOT NULL,
    `name` VARCHAR(45) NOT NULL,
PRIMARY KEY (`id`));

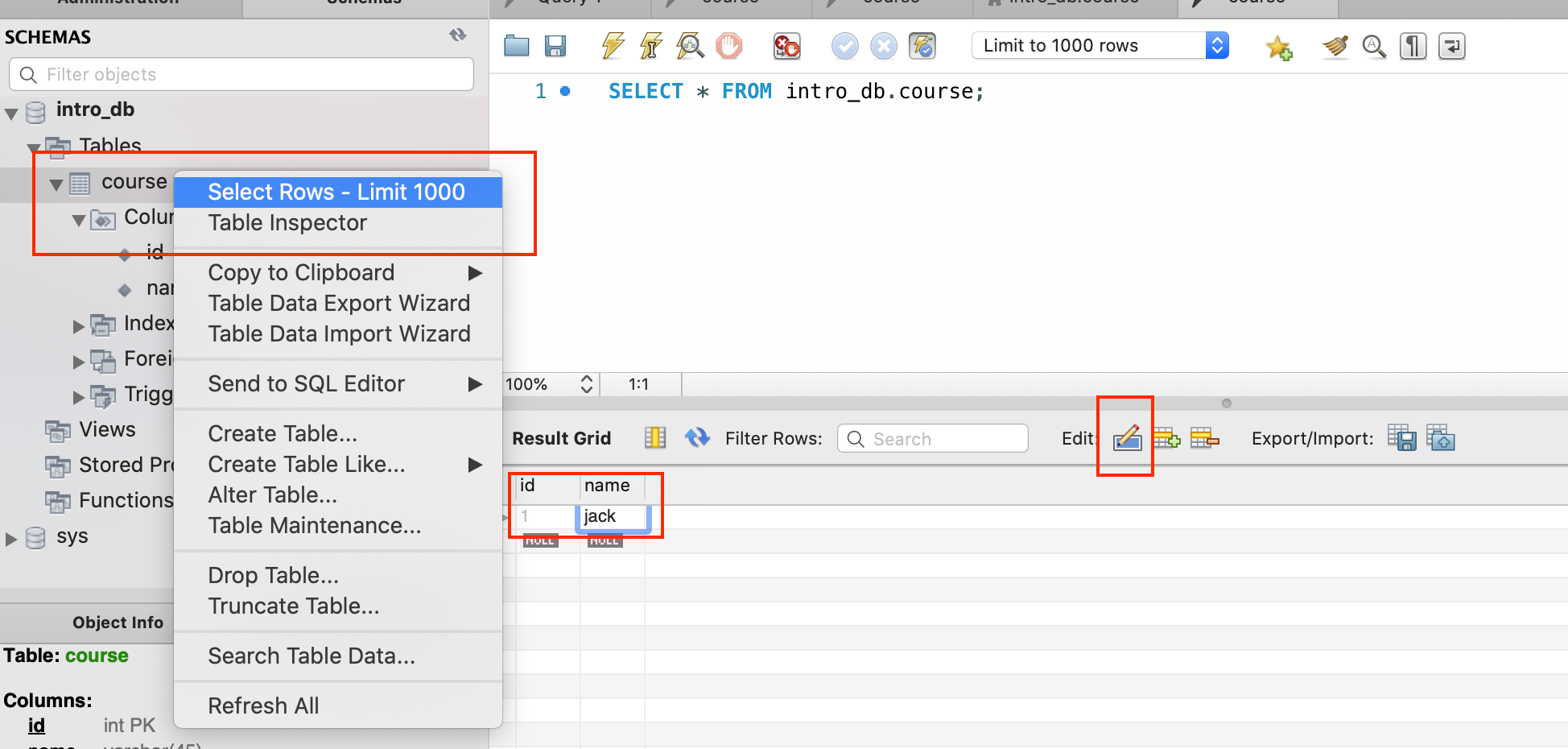

  • Insert a new data
Insert into `intro_db`.`course` (id, name) values (2, 'amy');
